Platforms
IoT-platforms supporting MQTT or COAP*
Encryption
TLS 1.2 (with MQTT)
Configuration
Preconfigured/browser*
Casing
Plastic material, Flame-resistant ABS UL94V-0
Measurements
Box without integrated battery: 124,3 x 67,3 x 22,5 mm (WxLxH)
Box with integrated battery: 124,3 x 67,3 x 35 mm (WxLxH)
Box with integrated battery: 124,3 x 67,3 x 35 mm (WxLxH)
Casing
Plastic material, Flame-resistant ABS UL94V-0
Mounting
2 x screw holes, diameter 4 mm
Alarms/status
LED-indicator (optional)
Battery
Optional battery (1850 mAh)
Charger
Built in battery charger
Power supply
5V via screw socket type connector
Integrated sensors
TVOC/CO2 (eCO2: 400ppm to 29206ppm, eTVOC: 0ppb to 32768ppb, TVOC sensor life span: >5 years)
Humidity/Temperature
Acceleration/movement
Humidity/Temperature
Acceleration/movement
External sensor inputs
Temperature, Dallas One-wire (Integrated 1-Wire standard configured for 3.3V devices)
4-20 mA current loop (12.2Ω sensing load, 250V isolated)
3 x Alarm inputs/DI (open circuit condition voltage 3.3V, closed circuit condition current 250uA, with 1.75s pulse duration stretching)
GPIO port with I2C, SPI and GPIOs. Not currently supported
by firmware
4-20 mA current loop (12.2Ω sensing load, 250V isolated)
3 x Alarm inputs/DI (open circuit condition voltage 3.3V, closed circuit condition current 250uA, with 1.75s pulse duration stretching)
GPIO port with I2C, SPI and GPIOs. Not currently supported
by firmware
Output
Relay output (max 100 mA)
Power supply
Input voltage: 100V – 240V AC
Input current: 0.5A max
Output voltage: 5V DC
Output current: 2.0A External supply voltage: 5.0V +/-10%
Input current: 0.5A max
Output voltage: 5V DC
Output current: 2.0A External supply voltage: 5.0V +/-10%
External supply current
between 0 – 600mA, depending on mode of operation
External supply fuse
750mA, quick-blow type, 20mm cartridge fuse
Temperature range
-20°C to +60°C
Approvals
CE, RED
*=planned

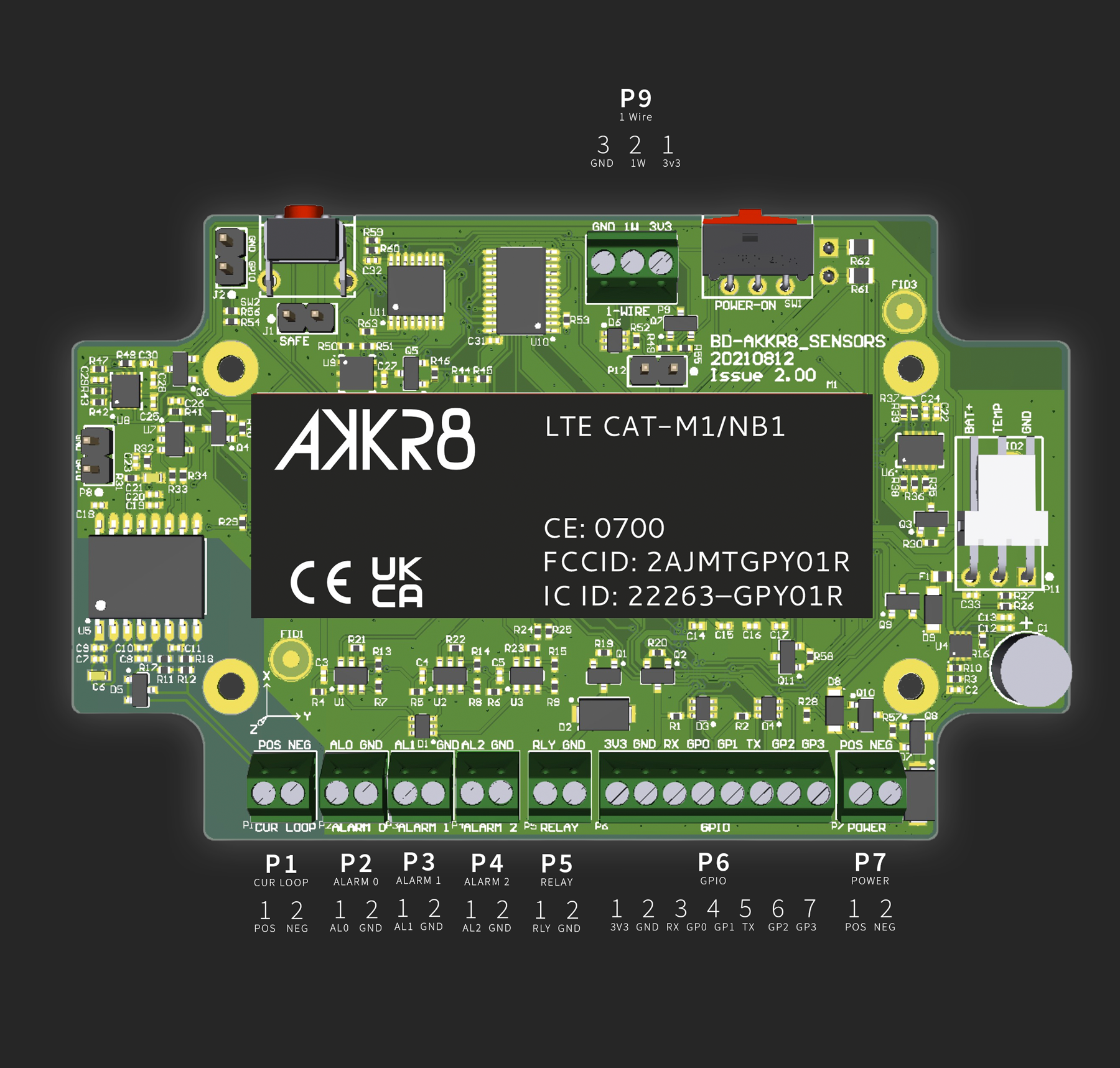

CONNECTORS

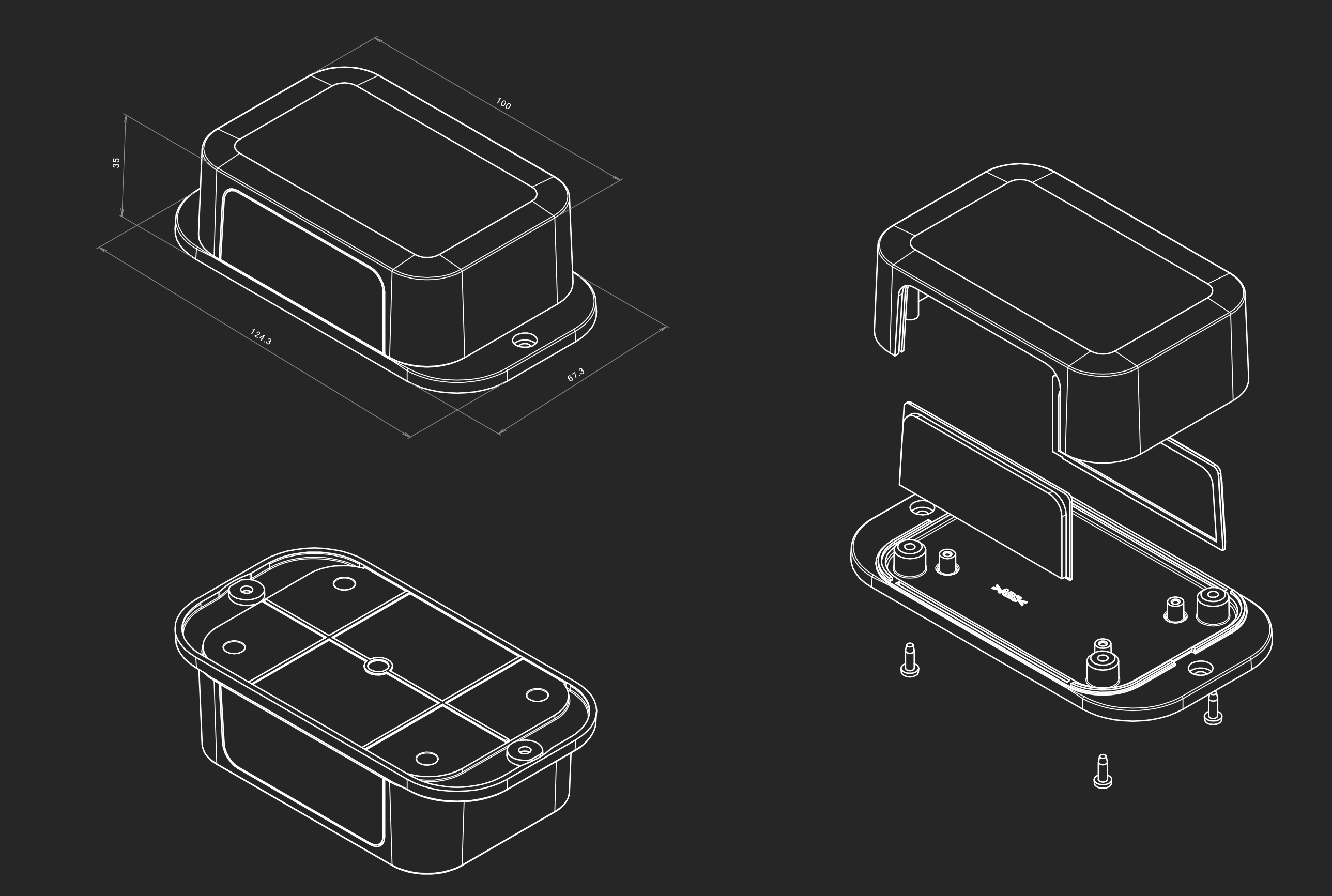

MEASUREMENTS BOX WITH BATTERY

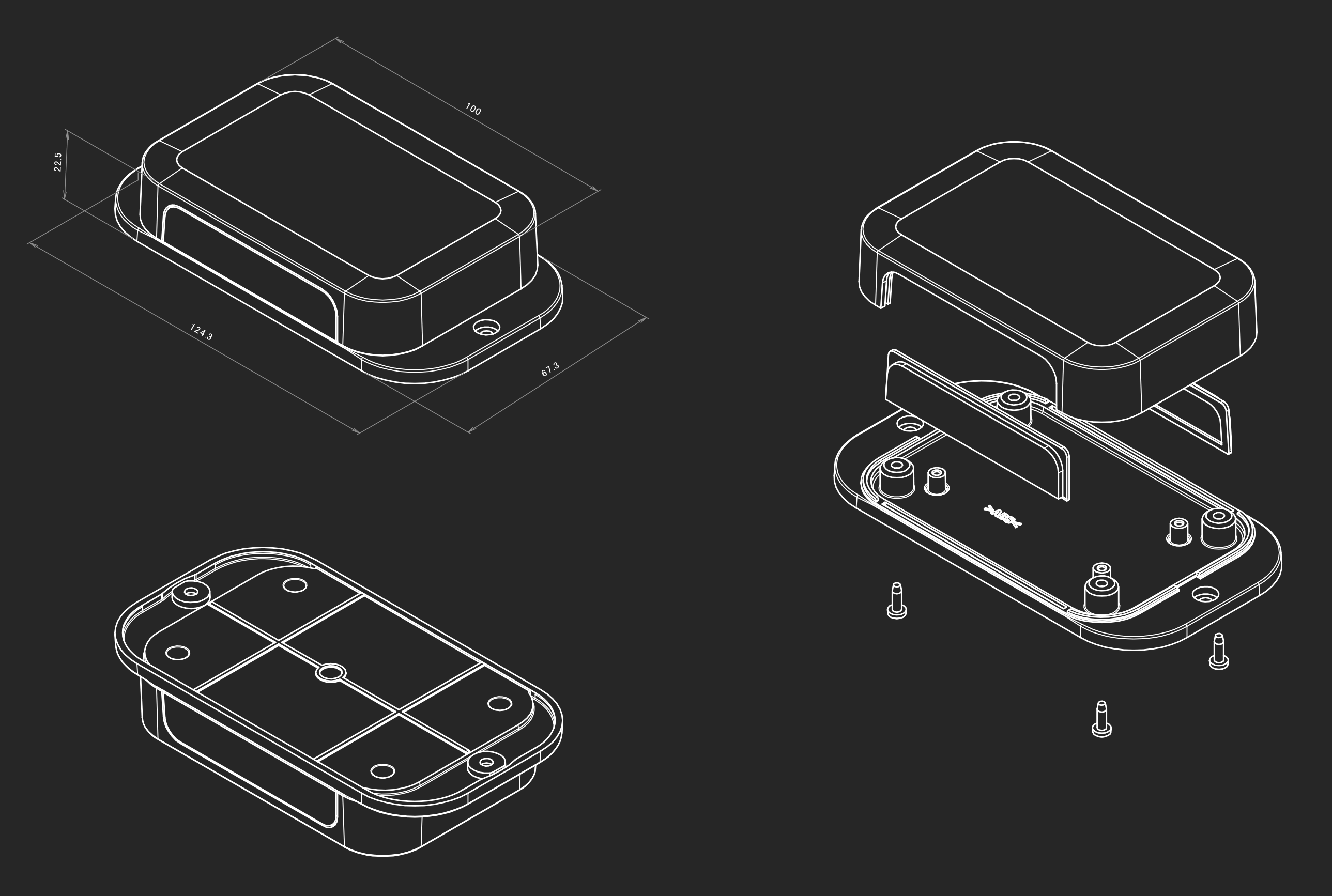

MEASUREMENTS BOX WITHOUT BATTERY
